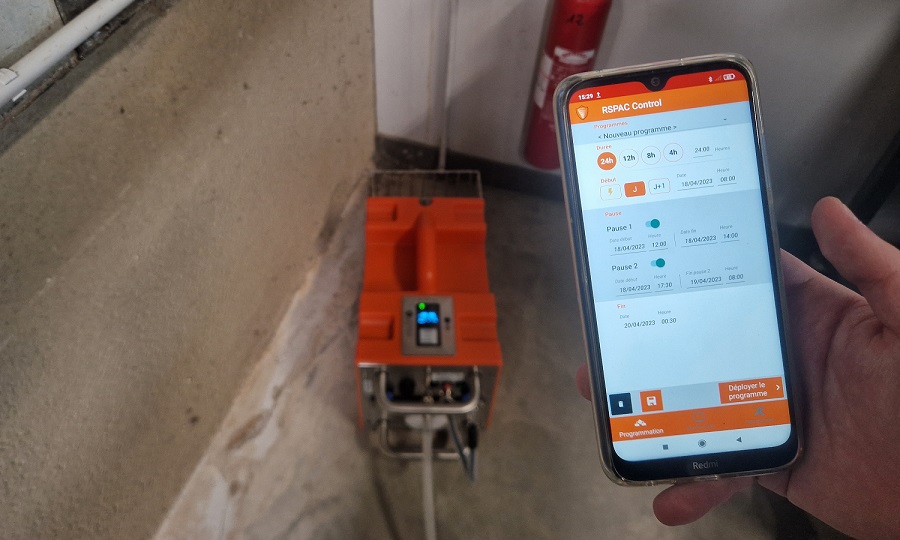

30 seconds to program a pump
Using the mobile app 📱 RSPAC Control you can create your air sampling programme in seconds and include up to 14 breaks. You can also program the pump using the buttons on the front panel.
Load several pumps at once
Quickly deploy the environmental sampling programme on all the pumps on your site using the mobile app 📱 RSPAC Control.

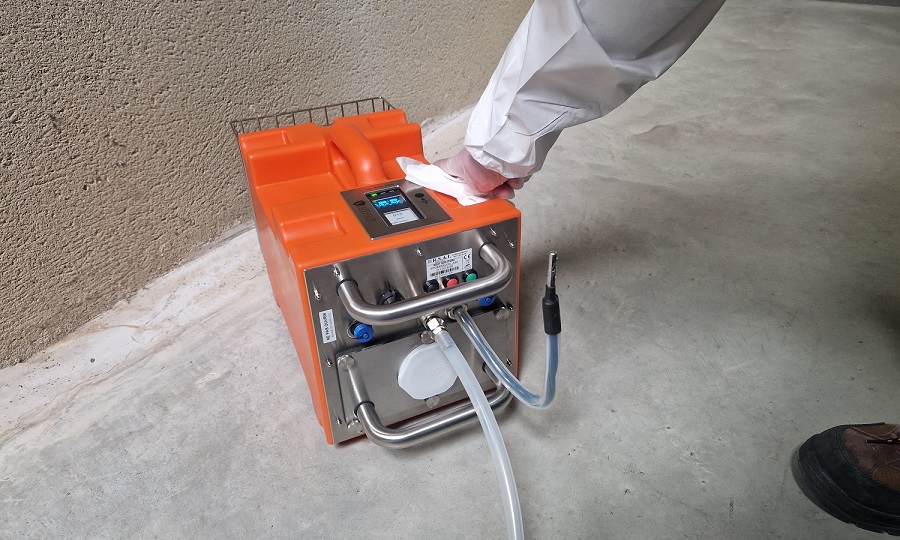

Easy decontamination
The RSPAC pump is designed for easy cleaning and decontamination. IP65 (IP-67 charger) pump fully protected against dust and water jets from all directions.

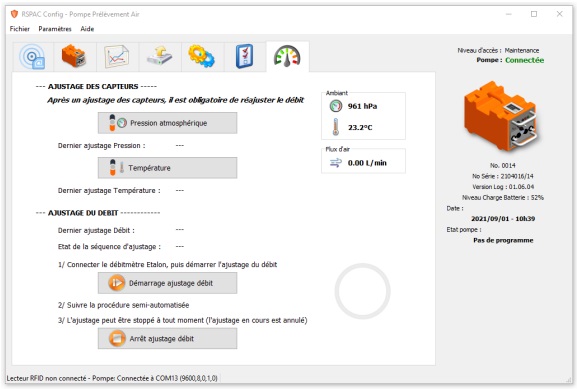

Quick and easy flow adjustment
Adjustment allows you to calibrate all the pump’s sensors to obtain the best possible flow rate and achieve accuracy of 0.01 l/min. The RSPAC Config software allows you to quickly and easily adjust the pump’s sensors against a reference value provided by a measuring device external to the system.
Flow rate check
Checking a pump involves checking the flow rate of the pump in operation against a reference value supplied by a measuring device external to the system.
a reference value provided by a measuring device external to the system. The RSPAC Config software allows you to set several fields depending on the checks you want to make.

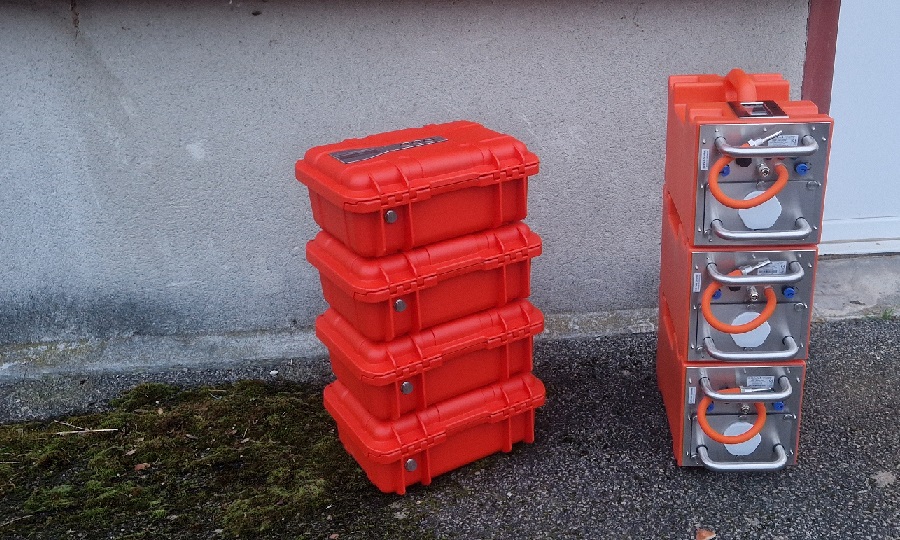

Stackable pumps
Stop damaging your pumps during transport and save space in your vehicles by stacking the sampling pumps. What’s more, the pump’s feet give it great stability and enable it to adapt to all types of terrain.
Permanent screen
No more vague marking of a pump… Quickly find a sample pump thanks to its name and number displayed on the permanent screen, which works even when the power is off.
Ambient air temperature measurement
Remote temperature sensor to measure ambient air in compliance with French norm NF X43-050 and FD X46-033 standards, negligible influence of the pump on the sensor measurement for better compensation.
Removable and interchangeable battery
Increase the productivity of the RSPAC pump by using 2 batteries for a single pump. The removable battery also reduces the weight of the pump when used on mains power without a battery (battery cover available as an option). Another advantage: the pump can be transported by air with the battery disconnected.
Mains power operation
In addition to its high-capacity battery (2 24-hour environmental samples), you can operate the pump on site with its IP67 cleanable charger (sampling and battery recharging simultaneously). A 110 V 60 Hz charger is available as an option for use abroad.
Password protection
A security code is required to use the pump, which you can enter directly on the pump. This code is memorized in the mobile application so that the operator does not have to enter it. The pump identifier can be configured to prevent your colleagues from seeing and communicating with your RSPAC pumps.
Export CSV or cloud data
Export all sampling data from the mobile application. A CSV-format file makes it easy for you to exploit your direct debit data. You can also send your data directly to a private cloud.
Securing your direct debit data
You can transfer the data from a sample to an RFID cleanable tag or badge for transmission with the sample cassette. The laboratory receives the filter and the measured data.
Stand-alone firmware update
Updating your pump’s firmware means you can keep your product performing at its best, while benefiting from the latest innovations proposed by our customer users. Improve the performance of your pumps and add new features with every update!
RSPAC solution features
METROLOGICAL CHARACTERISTICS |
|---|
| Regulated flow : 7 l/min (flow rate adjustable from 2 to 10 l/min available as an option) |
| Accuracy : +/- 2 % à 7 l/min |
| Precision : 0,01 l/min |
| Temperature sensitivity : 0,1 °C/min |
| Pressure sensitivity : 1 hPa/min |
| Technology : mass flow meter with compensation for temperature and atmospheric pressure. |
| Temperature sensor : remote to measure ambient air in compliance with the standard, negligible influence of the pump on the sensor. |
TECHNICAL SPECIFICATIONS |
|---|
| Operating temperature : – 10 à +50 °C |
| Storage temperature : – 20 à +85 °C |
| Operating pressure : 600 à 1100 hPa |
| Operating humidity : 0 à 90 % |
| Mechanical resistance : IK 7 |
| Protection class : IP-65 (IP-67 rated) pump fully protected against dust and water jets from all directions. |
| Battery capacity : 25 AH |
| Fanless autonomy : 50 hours, 2 24-hour environmental samples. |
| Autonomy with fan : 35 hours, 1 24-hour environmental sample with no problem. |
| 100% charge time : 7 up to 9 hours. |
| Mains operation : air sampling and battery charging at the same time. |
| Fan output : 12 V / 1 A works only with the RSPAC fan. |
| Dimensions : L 440 x l 240 x H 260 mm |
| Weight : 9,6 Kg |
MINIMUM CONFIGURATION RSPAC CONTROL MOBILE APPLICATION 📱 |
|---|
| Operating system : Android |
| Android version : 6+ |
| Connectivity : Bluetooth |
MINIMUM CONFIGURATION RSPAC CONFIG SOFTWARE 💻 |
|---|
| Operating system : Windows 10, Windows 11 |
| Available disk space : 500 Mo |
| RAM memory : 4 Go |
| Connection : USB |
